Product information

Description

The KONE ProSpace™ is a highly space-efficient elevator that can be installed in the stairwell of almost any building. This compact solution requires very little headroom and pit space, while the self-supporting shaft means the elevator can be installed without any major alterations to the building’s existing structures. KONE ProSpace fullfils the requirements of the European elevator standards EN81-20 and EN81-50.

Specifications

  • Description: space-efficient elevator solution for residential buildings without an elevator
  • Speed: 0.6 m/s
  • Max. travel: 30 m
  • Max. load: 675 kg
  • Max. persons: up to 9
  • Max. elevators in group: 1

Design

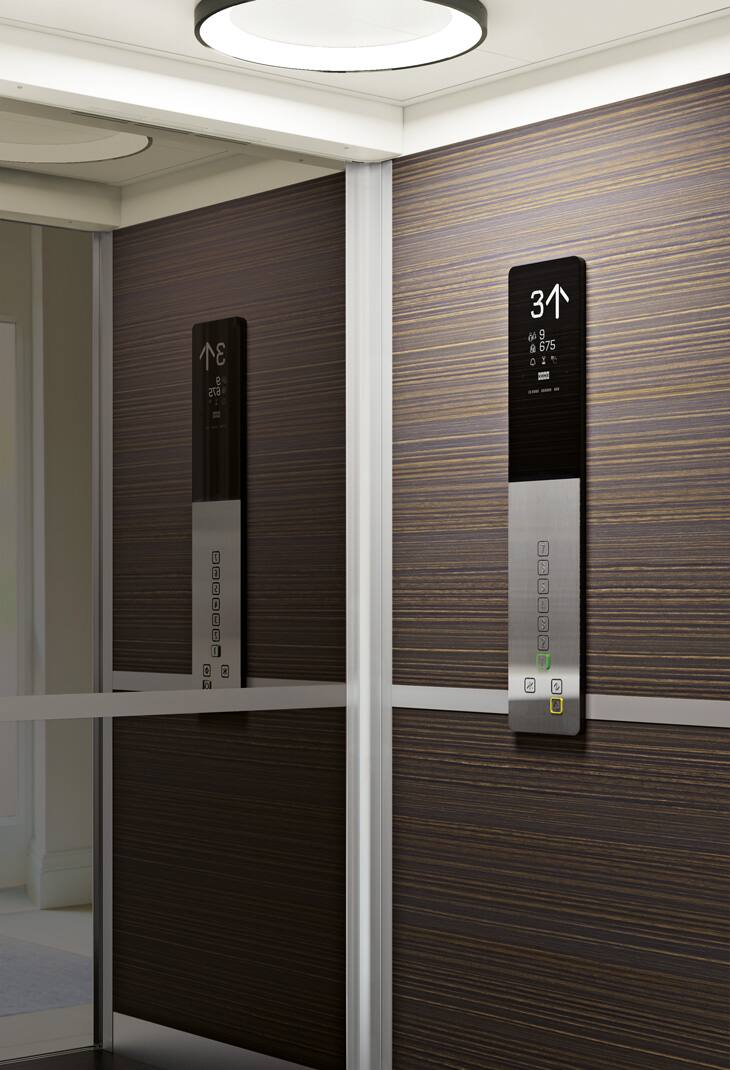

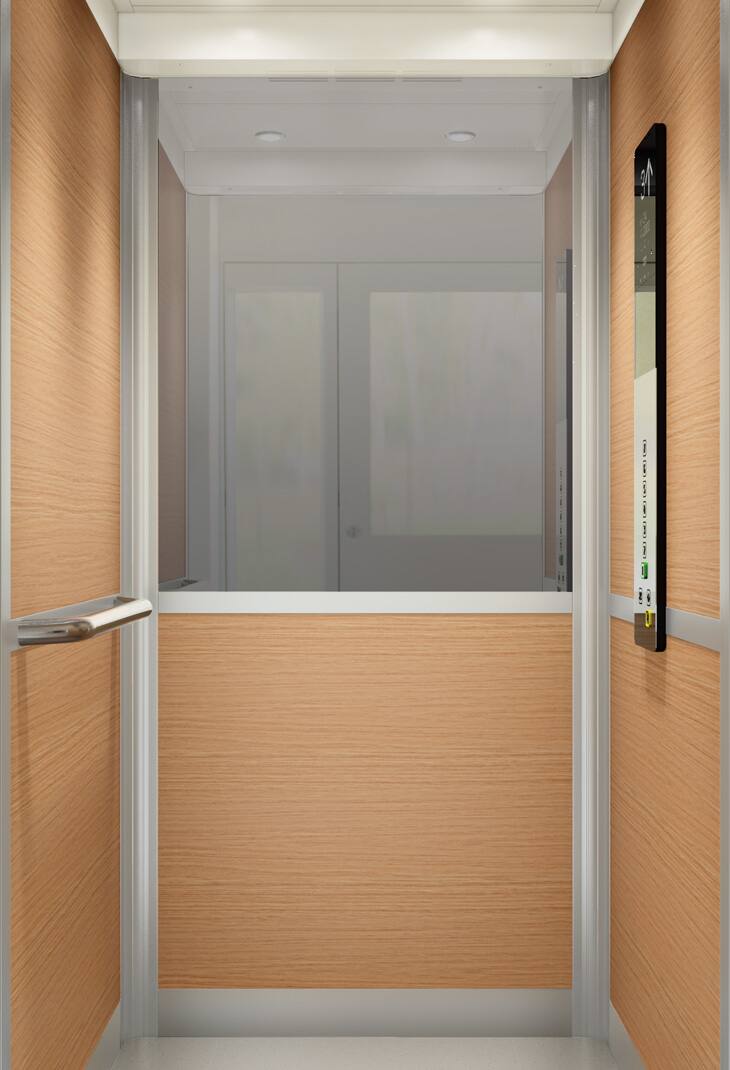

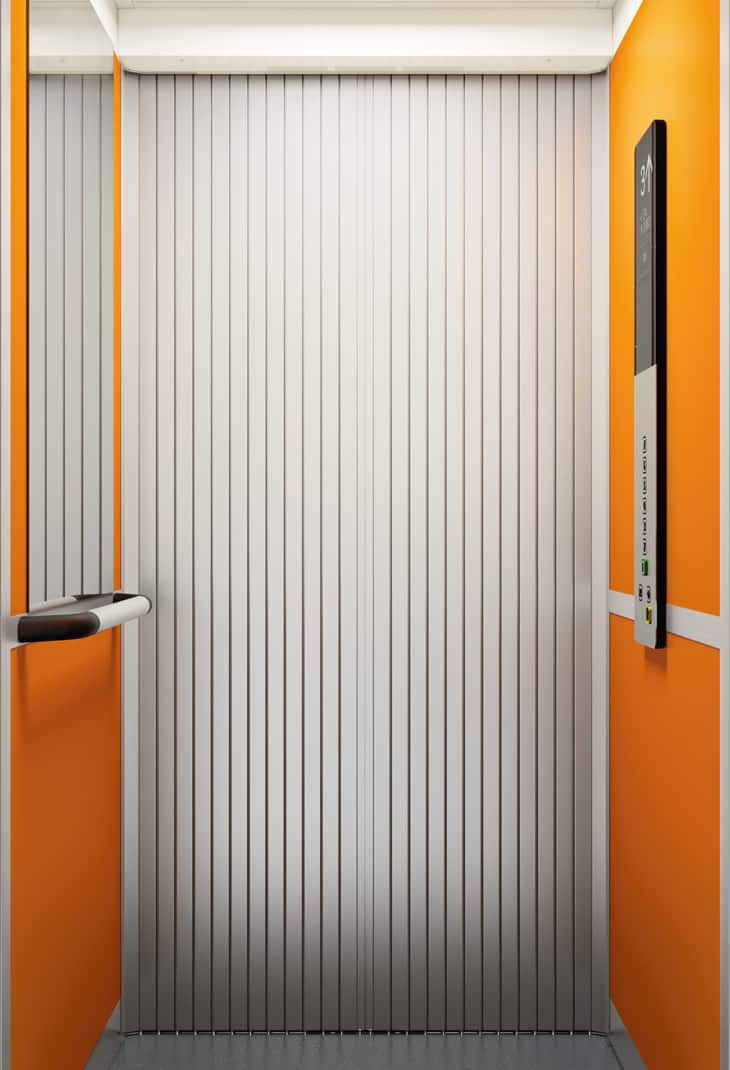

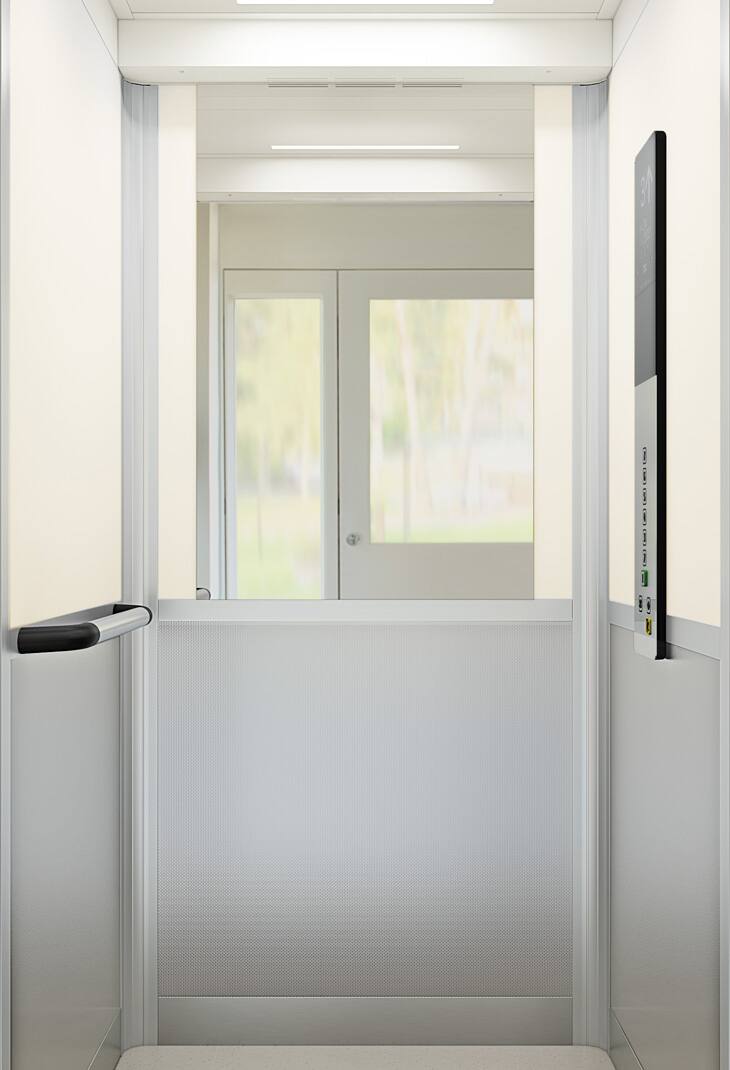

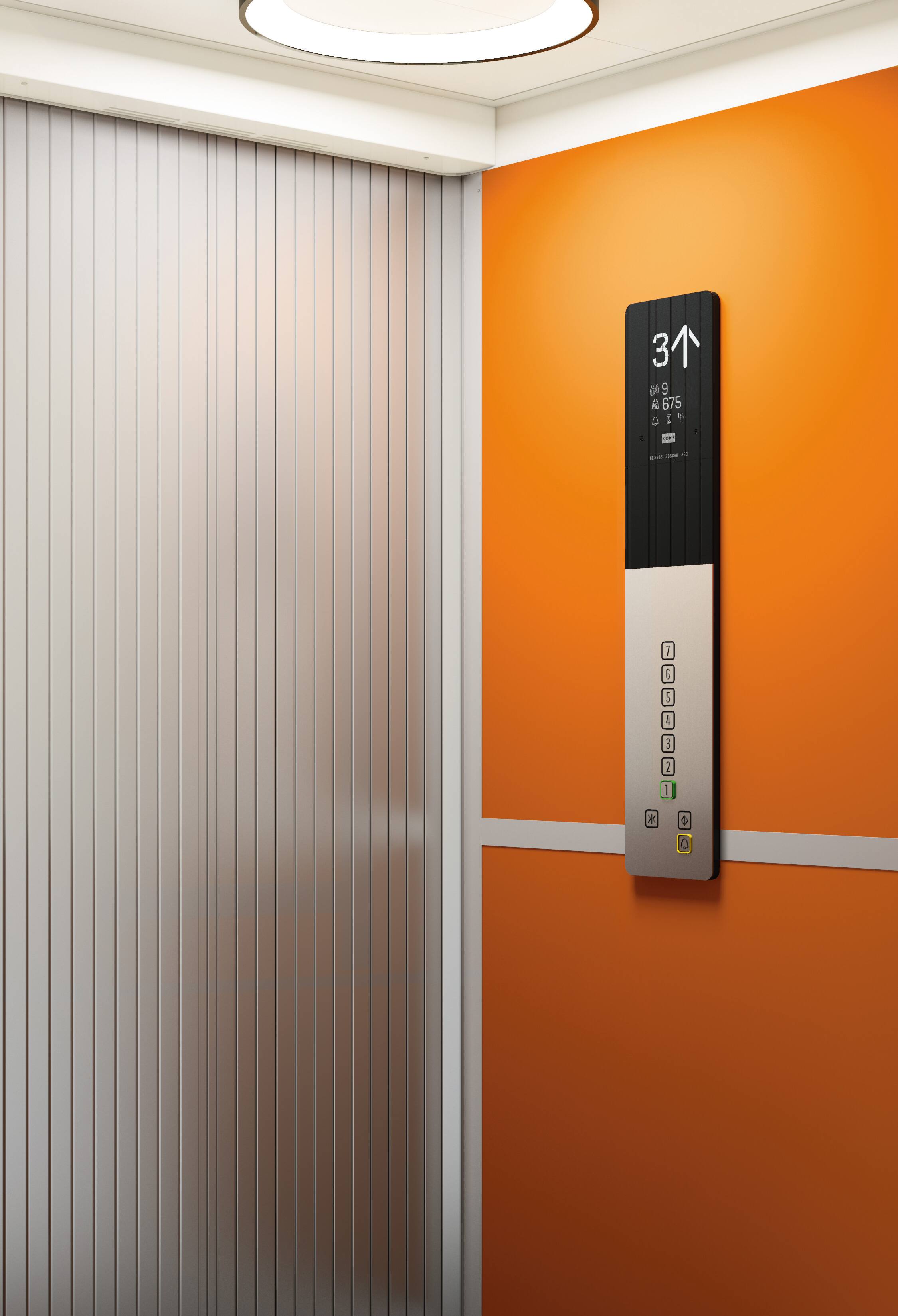

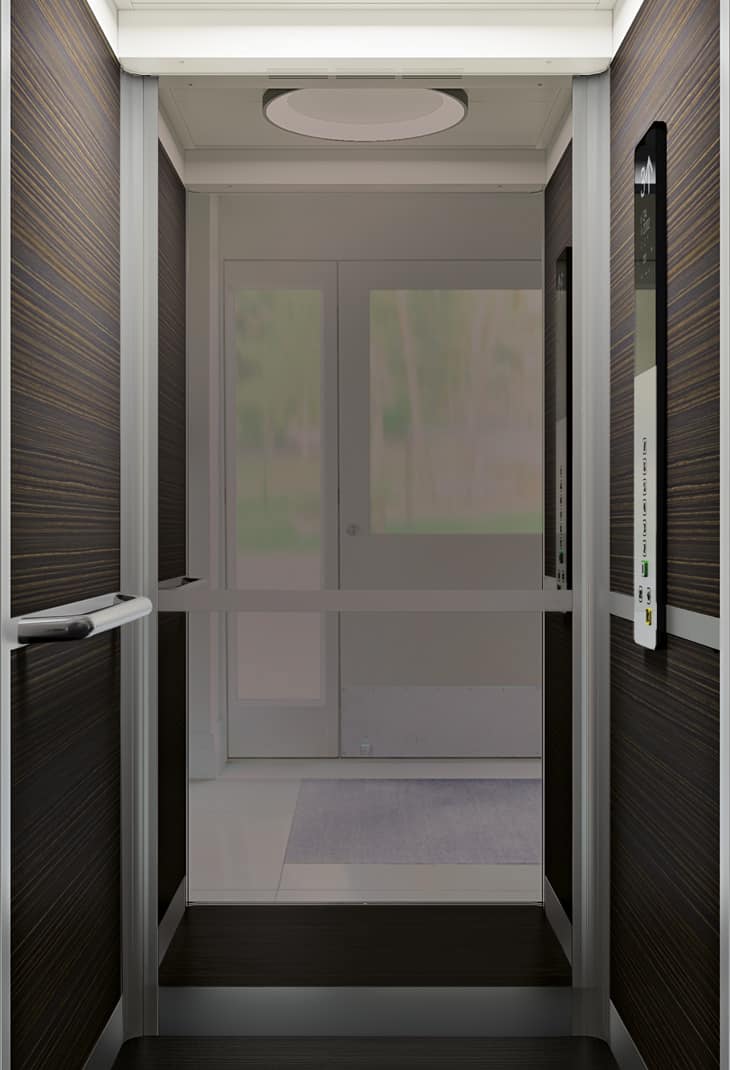

  • Wide range of door options, including swing and fire-rated doors
  • Several wall, floor, and accessory options
  • Custom designs also available
